Motorized Stages
Description
Motorized sample stages enable to focalize the sample by adjusting its vertical (Z) position and to handily move samples along the X and Y directions. They can be controlled either by a dedicated window of Koala acquisition and analysis software, or by using a joystick improving the ease of use.
Measurement possibilities :
- Fast and automated stitching of multiple measurements
- Efficient auto-focus (also on mirror-like samples)
- Automation of multiple measurements on a grid of samples
Several motorized stages offering various motion ranges are available. Choice varies for Reflection DHM® and Transmission DHM®. Custom XYZ sample stages with other motion ranges are available on request for both DHM® types.
Motorized stages for reflection DHM®
| Travel range (X x Y x Z) | X, Y min step size | X, Y max speed | Z resolution | Max load |
| 100 x 100 x 38 mm | 0.04 μm | 24 mm/s | 20 nm | 10 kg |
| 150 x 150 x 38 mm | 0.04 μm | 60 mm/s | 20 nm | 10 kg |
| 200 x 200 x 38 mm | 0.10 μm | 60 mm/s | 20 nm | 10 kg |
| 300 x 300 x 38 mm | 0.04 μm | 60 mm/s | 20 nm | 10 kg |

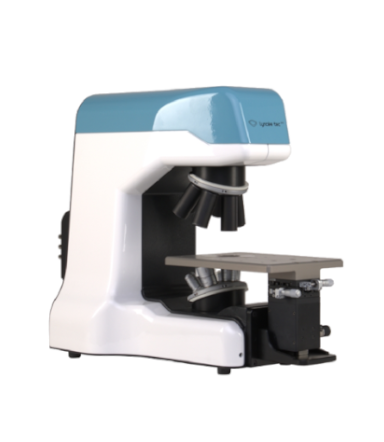

Motorized stages for transmission DHM®
| Travel range (X x Y x Z) | X, Y min step size | X, Y max speed | Z resolution | Max load |
| 114 x 76 x 38 mm | 0.01 μm | 60 mm/s | 20 nm | 10 kg |

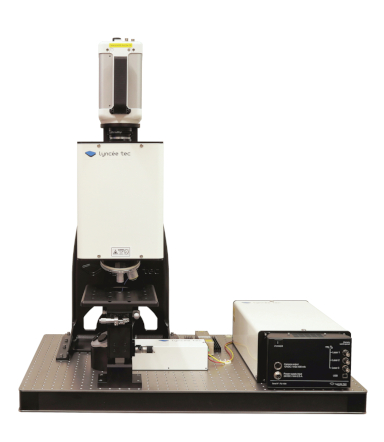

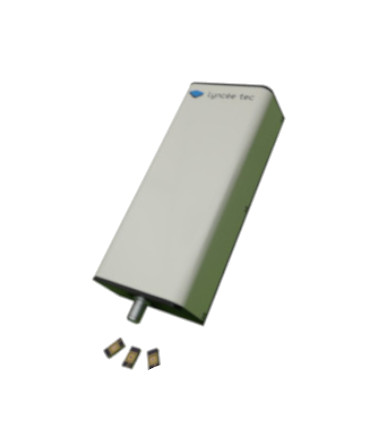

For industrial quality control and heavy duty applications, Lyncée provide workstations configuration with industrial grade motorized tables.
Lyncée workstations include a sturdy aluminum profile table, optional anti-vibration system, marble with structure to hold the DHM head, and XYZ control of sample position and object-to-sample distance.
The stages are especially designed to provide ultra high accuracy in compact dimensions. Depending of the application requirements, they are equipped with different motors and measuring systems.
- Excellent low noise movement of the motors and a resolution of 0.1 µm are the major features
- Anti-backlash pre-loaded cross roller guides or profiled rail guides
- Anti-backlash pre-loaded ball screw
- Clean room compatibility
- From 50 mm to 300 mm ranges
- Driven by joystick or by PC
Please share with us your needs, and we will propose the most suitable solution.-
